Logstash Custom Parsing

You can setup Logstash to do custom parsing of your logs and then send the output to Loggly. Logstash is able to parse logs using grok filters. This can be useful if your log format is not one of our automatically parsed formats. Parsing allows you to use advance features like statistical analysis on value fields, faceted search, filters and more.

  1. Setup Logstash
  2. If you haven’t already, configure Logstash to output to Loggly.

  3. Configure A Grok Filter
  4. Grok is library of expressions that make it easy to extract data from your logs. You can select from hundreds of available grok patterns.

    In this example, we have taken an example of the kern.log file and created a custom log format for the kernel logs and added in the Grok Filter.

    Sample log line from kern.log file

    Sep 24 08:12:51 ubuntu kernel: [ 0.000000] Calgary: Unable to locate Rio Grande table in EBDA - bailing!


    Custom format used

    %{CISCOTIMESTAMP:timestamp} %{HOST:host} %{WORD:program}%{NOTSPACE} %{NOTSPACE}%{NUMBER:duration}%{NOTSPACE} %{GREEDYDATA:kernel_logs}


    Paste this into your logstash configuration file, replacing your own customer token.

    input{
       file{
          path => "/var/log/kern.log"
          start_position => beginning
       }
    }
    filter{
       grok{
          add_field => {"source" => "logstash"}
          match => {"message" => "%{CISCOTIMESTAMP:timestamp} %{HOST:host} %{WORD:program}%{NOTSPACE} %{NOTSPACE}%{NUMBER:duration}%{NOTSPACE} %{GREEDYDATA:kernel_logs}"}
       }
    }
    output{
       loggly{
          host => "logs-01.loggly.com"
          key => "TOKEN"
          proto => "http"
       }
    }


    Replace:

  5. Verify Events

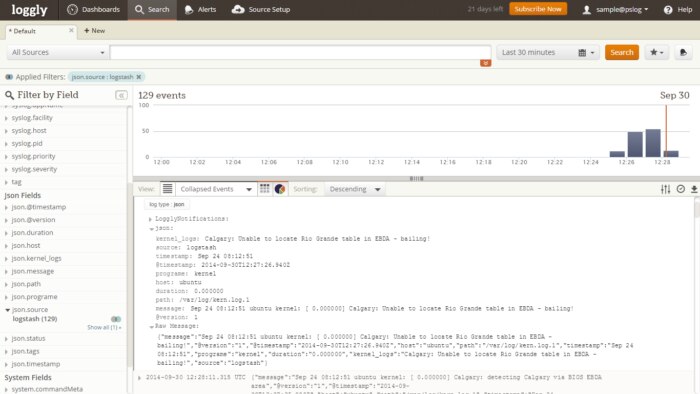

  6. See the output below for the above mentioned custom format.

    Logstash Custom Parsing

Advanced Logstash Custom Parsing Options

Troubleshooting Logstash Custom Parser

If you don’t see any data show up in the verification step, then check for these common problems.

    Check logstash configuration:

  • Wait a few minutes in case indexing needs to catch up
  • Debug grok formats using their interactive tool
  • See our Troubleshooting Logstash if the events are not being sent to Loggly
  • Still Not Working?

  • Search or post your own question in the community forum.
