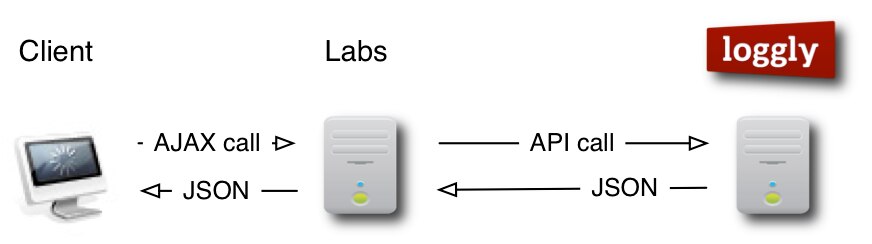

Last week I started playing some more with the Logging APIs from Loggly. For the first time I started embedding AJAX calls to the API into a Web application running on an external domain. Well, guess what happened? The browser barked at me telling me that I couldn’t execute a cross-domain AJAX call. I guess from a security perspective, that makes a lot of sense. However, I started thinking about how I could overcome this problem. The one way that I could have done it was not to use AJAX, but write some code server-side that would fetch the information format the Loggly API and then present it back to my Web application. I could even expose the information as an end point on the same domain that I then query from my application (see Figure).

Well, this seemed wrong. Why did we just design a really nice, RESTful API and then developers who want to use it have to build a server-side wrapper first. This didn’t make sense to me. So I kept digging. Fortunately, I found the solution. It’s called JSONP (JASON with Padding). Here is how it works and how you can leverage it in your own applications.

Let’s assume I am building an application at labs.loggly.com that will access the API located at loggly.loggly.com. With jQuery, my AJAX call looks as follows:

$.ajax({url: "http://loggly.loggly.com/api/search/?q=ntp", username="guest", password="loggly", ...})

Now, if you do this, you will get the cross-domain error. However, if you just slightly change your call to include an extra parameter, it will succeed:

$.ajax({url: "http://loggly.loggly.com/api/search/?q=ntp",
    username='guest', password='loggly',
    dataType:'jsonp',
    success: function(data) {
        flare = data['data'];
    },
    error: function(XMLHttpRequest, textStatus, errorThrown) {
        alert(textStatus+" - "+errorThrown);
    }
})

Note the newly added dataType parameter. That’s it? Yes, that’s it. It will work like a charm. No more cross-domain security issues. What basically happens are two things. First, the AJAX request that is executed has one more extra query parameter: &callback=?, where the question mark is some string that jQuery randomly generates. The second thing that happens is on the Loggly side. If the callback parameter is present, Loggly does not return the plain JSON element that you would expect, but it wraps it in a function call. Something like:

jsonp12312312({data:{"May-20-2010 12:13:45": 2"}, numFound: 1})

The next thing that happens is that when your browser gets the answer back like this, it will try to execute the function called jsonp12312312. jQuery internally handled that for you by creating a function hook for that function that points to the success function provided to the AJAX call.

That’s really it. We are looking forward seeing your applications that are using the Loggly APIs!

By the way, Loggly is using Django Piston for handling the APIs. The library automatically handles JSONP responses when a parameter called “callback” is present!

In my last blog entry, I showed you how you can enable logging in Django 1.2. Now we are going to look at the logging library that we built for Loggly to simplify the task of logging in our own Django application, the Loggly Web interface.

Here is how we log from within our application:

from loggly.logging import *

error({'object':'input','action':'create'})

That’s it. The above code creates the following log entry:

Mar 18 15:34:03 app loggly: severity=ERROR,user=logdog_zrlram,request_id=
08BaswoAAQgAADVDG3IAAAAD,object=input,action=create,status=failure

The logging call expects a dict of key-value pairs. This is to enforce key-value based log entries that make it easy for consumers to understand what a specific value means. Without the inclusion of a key, a value is more or less useless. In the example above, note that I only provided two keys: object, and action. However, the log entry contains a number of other data items. Those items are automatically added to the log entries by our logging library without burdening the developer to explicitly include them.

It is probably time to show you Loggly’s logging library:

import logging
import inspect

DEFAULT_LOGGER = 'loggly_web'
logs = None

def logHelper(rest=None, request=None):

    global logs
    output = list()

    # get the logger
    if not logs:
        logs = logging.getLogger(DEFAULT_LOGGER)

    # Loop through all the stack frames until you find the request
    stack = inspect.stack()
    for frame in stack:
        if frame[0].f_locals.has_key('request'):
            request = frame[0].f_locals['request']
            if request is None:
                continue
            # there is a request object
            if hasattr(request,'user') and hasattr(request.user,'username') and len(request.user.username)>0:
                output.append("user="+str(request.user.username).strip())
            if hasattr(request,'META') and request.META.has_key('UNIQUE_ID'):
                output.append("request_id="+str(request.META['UNIQUE_ID']).strip())
            # we found the request object. Get out of here
            break

    # getting input dictionary and appending
    if rest:
        for key in rest:
            output.append("%s=%s" % (str(key.strip()), str(rest[key]).strip()))

    ret = ",".join(map(str, output))
    return ret

def info(rest=None, user=None):

    msg = logHelper(rest, request)
    logs.info(msg)

def error(rest=None, user=None):

    msg = logHelper(rest, request)
    logs.error(msg)

Note that this is only an extract. Download the entire library if you want to use it in your own code. Here are some important things the code does:

• line 17 to 29: This part of the code inspects the call stack to check whether there is an HTTP request object somewhere. The request object contains the username for the session and that is what we automatically extract . This frees the user from manually adding that information to the logging call. Automation is good!
• line 26 and 27: We are using UNIQUE_IDs in Apache. In order to track a request from the Apache logs down into our application, we include that same ID into our Django logs. This is a huge win for associating Apache logs with our application logs.
• line 32 to 24: All the dict entries are added as ‘key=value’ pairs to the log entry. So you can log any key you want.
• line 39 to 47: These are the calls that you use in your code. Note that you can add a user field, which overwrites the username from the request. In some cases that is necessary and useful.

Let us know if you are using our library. I would love to hear back from you. I will post another blog entry later, where I will be talking about how to patch Django itself to do some more logging. We will be looking at how the authentication methods can be extended.

The links:
Django 1.2 Logging Patch
Loggly Logging Library

On Monday Django 1.2 was released. At Loggly, we highly anticipated this release. We have been running version 1.2 since the early Alpha releases. During the Alpha times, Simon Willison released a patch and proposal/ticket of how to enable logging in Django applications. It looked like the patch would get included in the main Django branch. Can you imagine how disappointed we were when the we realized that the patch didn’t make it into the final release?
Well, what we ended up doing was to patch Django with Simon’s patch. Took me a little while to update the patch to work with the final 1.2 release. If you want to use the patch, download it here. What you need to do then is patch your Django install with this. So, download the Django 1.2 tar ball and do the following:

tar -xzf Django-1.2.tar.gz
cd Django-1.2
patch -p0 < /tmp/django_logging_1.2.patch
python ./setup.py install

This will include the patch into your Django distro and install it. As a next step, you configure your application for logging by adding a snippet similar to the following in your settings.py file:

LOGGING = {
    'loggly_feature': {
        'handler': 'logging.handlers.SysLogHandler',
        'address': ('localhost', 514),
        'facility': 'local3',
        'level': 'INFO',
        'format': 'loggly: %(message)s',        # does not include the severity. it's features, baby!
    },
}

From there you use the following code snippet to log out of your application:

import logging
logs = logging.getLogger('loggly_feature')
logs.error("message")

More information about how to use the logging libraries you find in the Python documentation. It also seems like Django 1.3 will have logging built in. From what I can tell, it looks similar to Simon's approach, but it's not quite the same. I'll keep you posted here!

In my next blog post I will show you how we implemented a logging library for Loggly so that we can very easily log from anywhere within our application.

Django 1.2 Logging Patch

On Monday, Loggly closed a $4.2M B round, with Trinity Ventures leading and True Ventures participating. As you may recall from my previous post, True led our initial seed investment, which was closed 5 months ago to the day.

My relationship with Trinity goes back over a year and a half ago – well before Raffy and I started thinking about doing a cloud based log management offering. Like many other startups, Trinity was started by two entrepreneurs. For years, Trinity’s motto has been focusing on early stage companies in specific technology categories, such as cloud computing and systems management.

Loggly is extremely fortunate to be working with Trinity and their bright team, and we greatly value the market experience they bring to the relationship.

History Lessons

I met Trinity through a fairly short introduction path. My good friend and former colleague, Dakota Sullivan, introduced me to a gentleman named Matt Strand in January of 2009. Matt and I had coffee at Crossroads Cafe in South Beach where I told him I was looking to join or start a cloud computing based company. Matt figured he should hook me up with a VC buddy of his, Dan Scholnick at Trinity.

Here’s the email introducing the two of us:

Matt was right about it being a valuable connection. Over the next year Dan and I would spend time together drinking coffee, chatting on the phone, and emailing each other about ideas in and around the enterprise and cloud computing space.

It was because of my conversations with Dan that Raffy and I were able to come to the idea of a cloud based logging service. Even when it came time to start pitching Loggly to others, Dan and Noel assisted us in honing our pitch, which eventually led to us being funded by True in a seed round.

Start Small, Go Big

When you are starting out, even the smallest conversation or the shortest email could potentially be the most important one you’ve had in years. Having an idea, growing it, and turning it into a business is a complicated process. That process takes time, and doesn’t happen over a matter of days, or even weeks, but instead over months and even years.

Our relationship with Trinity has been a long time in the works. While it may have appeared to happen rather quickly, Loggly’s efforts with Trinity started at the very beginning of its life.

In as much as your idea should evolve over time, your ability to convey the idea and the opportunity it represents should grow as well. I’ve lost count of how many times Dan has told me to ‘crisp up’ my presentation, discussed with me partnership negotiation strategies, or told me how to approach feedback with our current private beta testers, but I’m sure the hell glad he did.

Without investors like Trinity and True, it’s unlikely I’d be here telling you this story. You would be well to seek out these types of investors when you are looking for direction and guidance for your idea.

Now you’ll excuse me while we get back to coding. We have beta testers who have logs in need of indexing!
